CSD85312Q3E

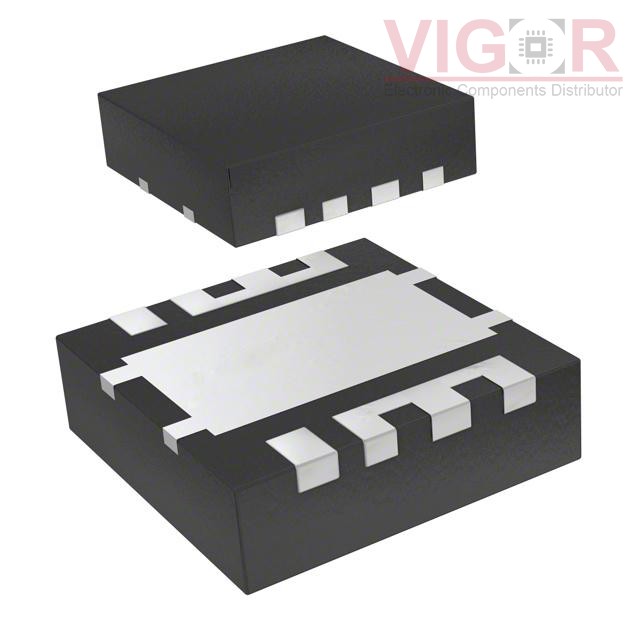

Image is for reference,
please contact us to get the real picture

Part No :: CSD85312Q3E

Manufacturer: Texas Instruments

Description: MOSFET 2N-CH 20V 39A 8VSON

Catalog: Transistors - FETs, MOSFETs - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: CSD85312Q3E PDF

Availability: 3607 pieces

Unit Price: ~~$0.99000~~

Current price of CSD85312Q3E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD85312Q3E Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Common Source
FET Feature:	Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	39A
Rds On (Max) @ Id, Vgs:	12.4mOhm @ 10A, 8V
Vgs(th) (Max) @ Id:	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	15.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	2390pF @ 10V
Power - Max:	2.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerVDFN
Supplier Device Package:	8-VSON (3.3x3.3)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

FS50KM-2#E52

DISCRETE / POWER MOSFET

HOT

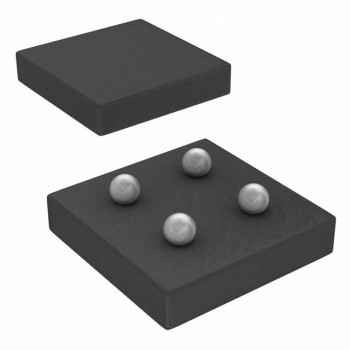

EFC4619R-TR
