MSCSM120TAM11CTPAG

MSCSM120TAM11CTPAG

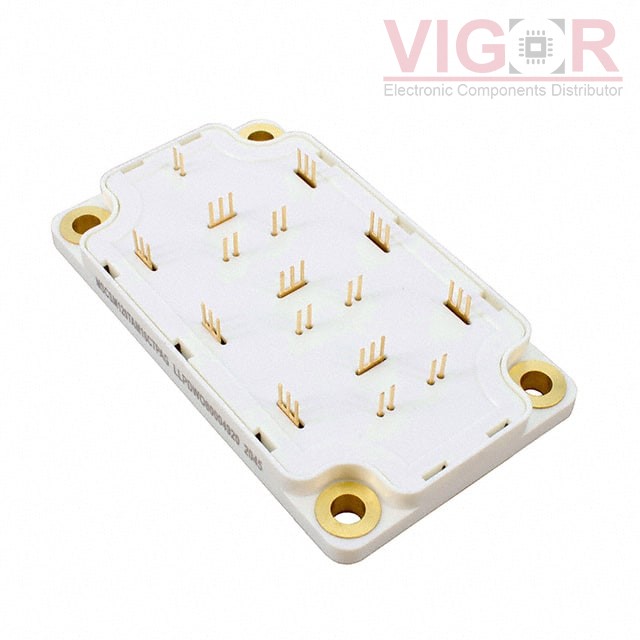

Image is for reference,
please contact us to get the real picture

Part No :

MSCSM120TAM11CTPAG

Manufacturer
Roving Networks / Microchip Technology
Description
PM-MOSFET-SIC-SBD~-SP6P
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
MSCSM120TAM11CTPAG PDF
Availability
3 pieces
Unit Price
$1035.31000

Current price of MSCSM120TAM11CTPAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MSCSM120TAM11CTPAG Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
FET Type:6 N-Channel (3-Phase Bridge)
FET Feature:Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:251A (Tc)
Rds On (Max) @ Id, Vgs:10.4mOhm @ 120A, 20V
Vgs(th) (Max) @ Id:2.8V @ 3mA
Gate Charge (Qg) (Max) @ Vgs:696nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:9060pF @ 1000V
Power - Max:1.042kW (Tc)
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Chassis Mount
Package / Case:Module
Supplier Device Package:SP6-P
