DMN2010UDZ-7

DMN2010UDZ-7

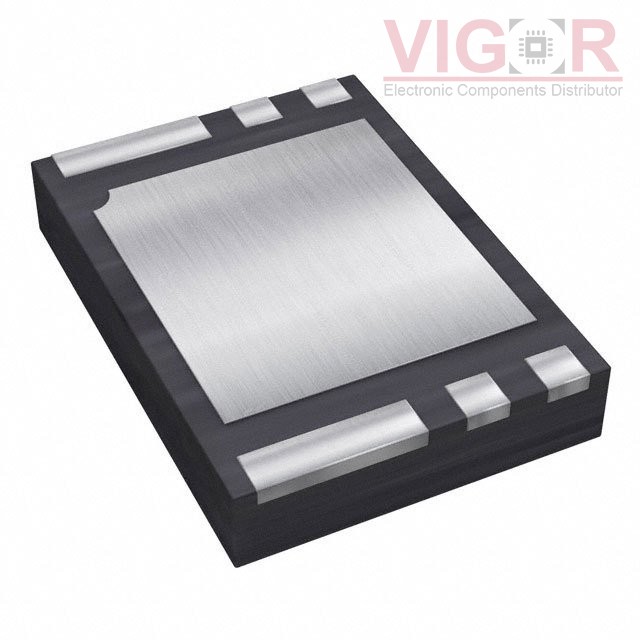

Image is for reference,
please contact us to get the real picture

Part No :

DMN2010UDZ-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET 2N-CH 20V 11A U-DFN2535-6
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
DMN2010UDZ-7 PDF
Availability
28949000 pieces
Unit Price
$0.99000

Current price of DMN2010UDZ-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMN2010UDZ-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual) Common Drain
FET Feature:Standard
Drain to Source Voltage (Vdss):24V
Current - Continuous Drain (Id) @ 25°C:11A
Rds On (Max) @ Id, Vgs:7mOhm @ 5.5A, 4.5V
Vgs(th) (Max) @ Id:1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:33.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:2665pF @ 10V
Power - Max:700mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-UDFN Exposed Pad
Supplier Device Package:U-DFN2535-6
