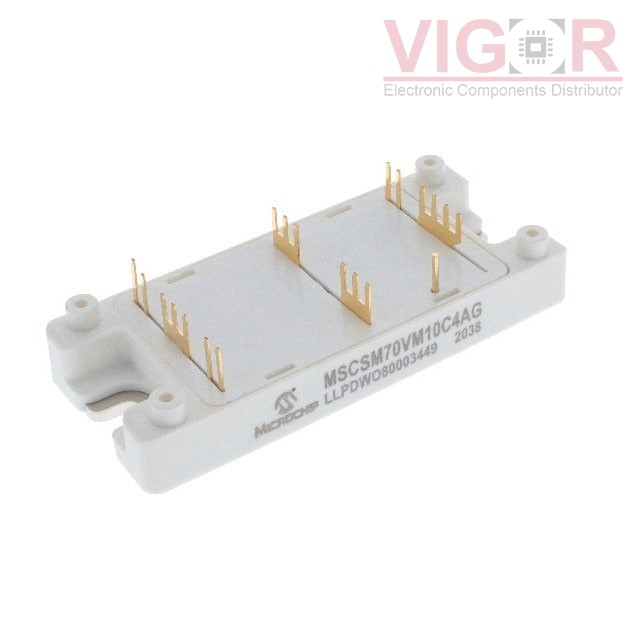

MSCSM70VM10C4AG

Image is for reference,
please contact us to get the real picture

Part No :

MSCSM70VM10C4AG

Manufacturer
Roving Networks / Microchip Technology
Description
PM-MOSFET-SIC-SBD~-SP4
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
MSCSM70VM10C4AG PDF
Availability
9 pieces
Unit Price
$299.45000

Current price of MSCSM70VM10C4AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tube
Part Status:Active
FET Type:2 N Channel (Phase Leg)
FET Feature:Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):700V
Current - Continuous Drain (Id) @ 25°C:238A (Tc)
Rds On (Max) @ Id, Vgs:9.5mOhm @ 80A, 20V
Vgs(th) (Max) @ Id:2.4V @ 8mA
Gate Charge (Qg) (Max) @ Vgs:430nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:9000pF @ 700V
Power - Max:674W (Tc)
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Chassis Mount
Package / Case:Module
Supplier Device Package:SP4
