TSM250N02DCQ RFG

TSM250N02DCQ RFG

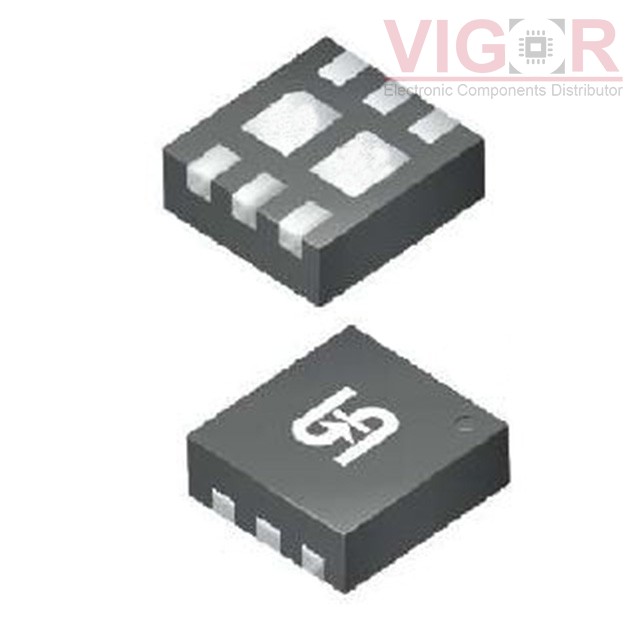

Image is for reference,
please contact us to get the real picture

Part No :

TSM250N02DCQ RFG

Manufacturer
TSC (Taiwan Semiconductor)
Description
MOSFET 2 N-CH 20V 5.8A 6TDFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
TSM250N02DCQ RFG PDF
Availability
0 pieces
Unit Price
$0.52000

Current price of TSM250N02DCQ RFG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM250N02DCQ RFG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:5.8A (Tc)
Rds On (Max) @ Id, Vgs:25mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:775pF @ 10V
Power - Max:620mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-VDFN Exposed Pad
Supplier Device Package:6-TDFN (2x2)
