AO5804E

AO5804E

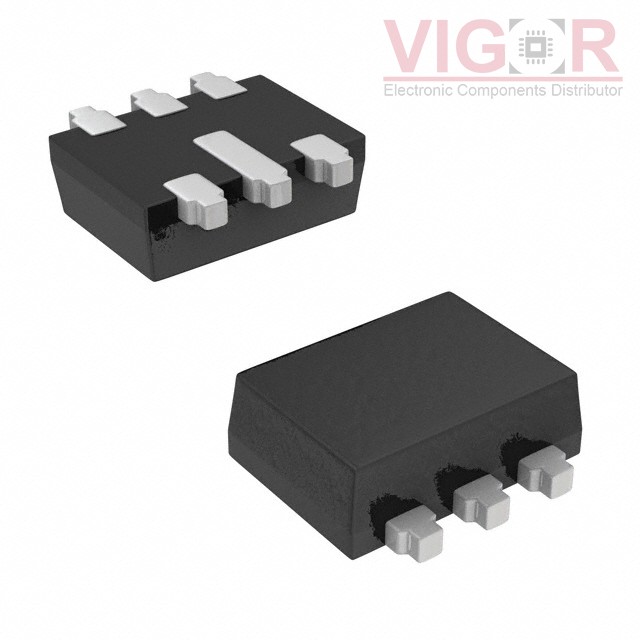

Image is for reference,
please contact us to get the real picture

Part No :

AO5804E

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET 2N-CH 20V 0.5A SC89-6L
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
AO5804E PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AO5804E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AO5804E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:2 N-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:500mA
Rds On (Max) @ Id, Vgs:550mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:45pF @ 10V
Power - Max:280mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-563, SOT-666
Supplier Device Package:SC-89-6
