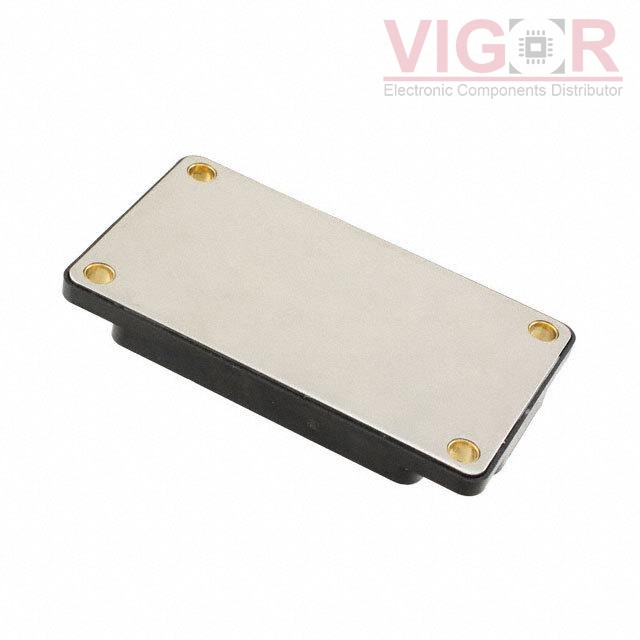

APTM120TDU57PG

Image is for reference,
please contact us to get the real picture

Part No :: APTM120TDU57PG

Manufacturer: Microsemi

Description: MOSFET 6N-CH 1200V 17A SP6-P

Catalog: Transistors - FETs, MOSFETs - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: APTM120TDU57PG PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of APTM120TDU57PG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APTM120TDU57PG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	6 N-Channel (3-Phase Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	17A
Rds On (Max) @ Id, Vgs:	684mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs:	187nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	5155pF @ 25V
Power - Max:	390W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6-P

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SI4940DY-T1-E3

MOSFET 2N-CH 40V 4.2A 8-SOIC

HOT

AO4812L

MOSFET 2N-CH 30V 6A

HOT

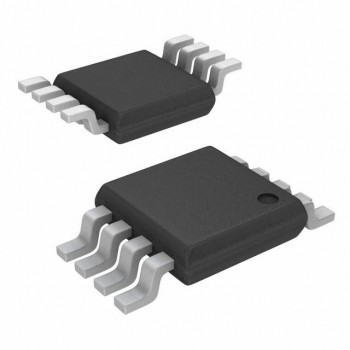

SI6544BDQ-T1-E3
