FDR8305N

FDR8305N

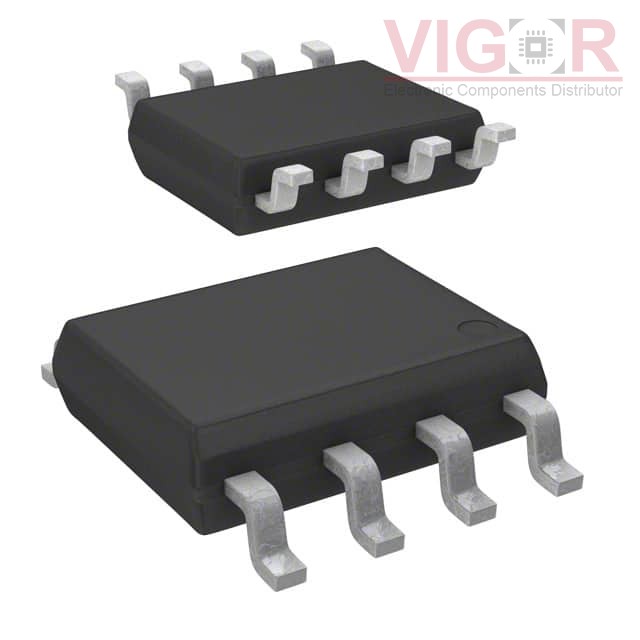

Image is for reference,
please contact us to get the real picture

Part No :

FDR8305N

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET 2N-CH 20V 4.5A SSOT-8
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
FDR8305N PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of FDR8305N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FDR8305N Specifications
Type Description
Series:PowerTrench®
Package:Tape & Reel (TR)
Part Status:Obsolete
FET Type:2 N-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:4.5A
Rds On (Max) @ Id, Vgs:22mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id:1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:23nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:1600pF @ 10V
Power - Max:800mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-LSOP (0.130", 3.30mm Width)
Supplier Device Package:SuperSOT™-8
