DMP2070UCB6-7

DMP2070UCB6-7

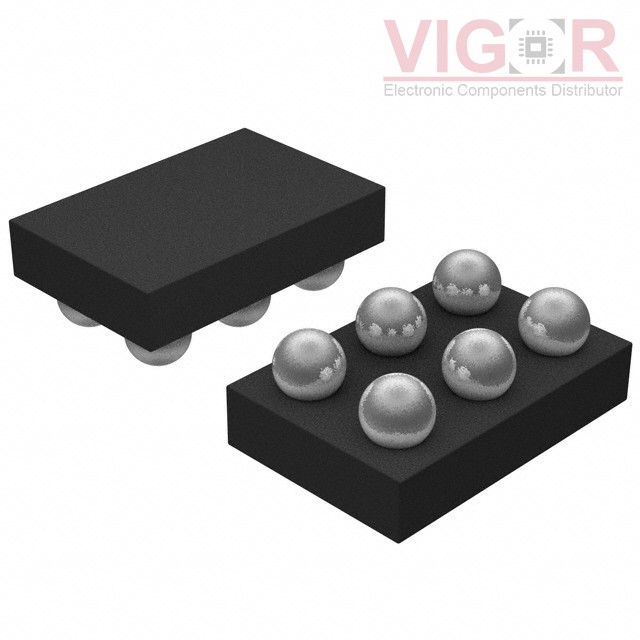

Image is for reference,
please contact us to get the real picture

Part No :

DMP2070UCB6-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET P-CH 20V 2.5A U-WLB1510-6
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
DMP2070UCB6-7 PDF
Availability
0 pieces
Unit Price
$0.17732

Current price of DMP2070UCB6-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMP2070UCB6-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
Rds On (Max) @ Id, Vgs:70mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:2.9 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:210 pF @ 10 V
FET Feature:-
Power Dissipation (Max):920mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:U-WLB1510-6 (Type B)
Package / Case:6-UFBGA, WLBGA
