CSD16413Q5A

CSD16413Q5A

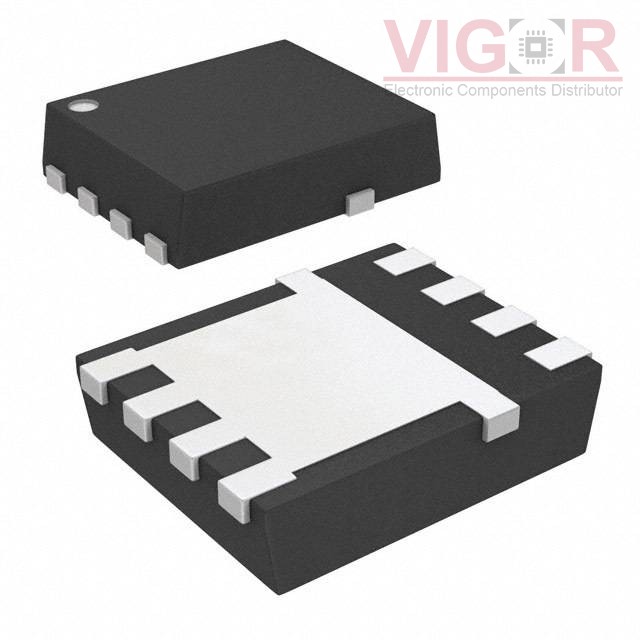

Image is for reference,
please contact us to get the real picture

Part No :

CSD16413Q5A

Manufacturer
Texas Instruments
Description
MOSFET N-CH 25V 24A/100A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
CSD16413Q5A PDF
Availability
903 pieces
Unit Price
$1.47000

Current price of CSD16413Q5A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD16413Q5A Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:24A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:3.9mOhm @ 24A, 10V
Vgs(th) (Max) @ Id:1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:11.7 nC @ 4.5 V
Vgs (Max):+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds:1780 pF @ 12.5 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSONP (5x6)
Package / Case:8-PowerTDFN
