DN1509N8-G

DN1509N8-G

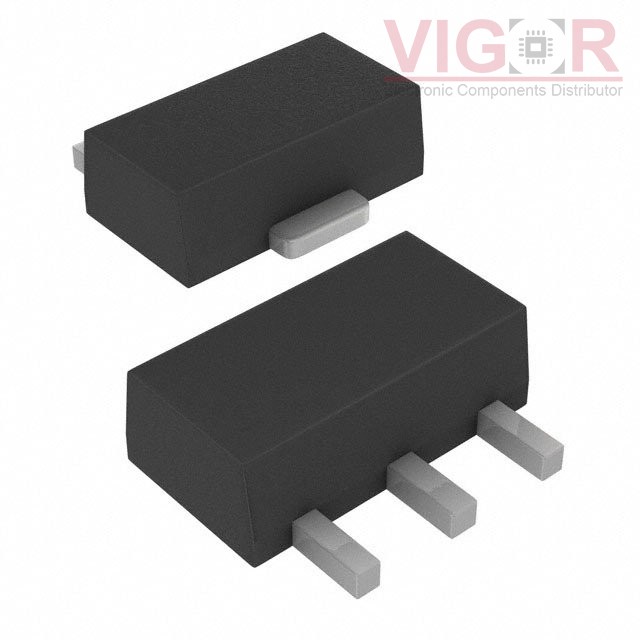

Image is for reference,
please contact us to get the real picture

Part No :

DN1509N8-G

Manufacturer
Roving Networks / Microchip Technology
Description
MOSFET N-CH 90V 360MA TO243AA
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
DN1509N8-G PDF
Availability
553 pieces
Unit Price
$0.74000

Current price of DN1509N8-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DN1509N8-G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):90 V
Current - Continuous Drain (Id) @ 25°C:360mA (Tj)
Drive Voltage (Max Rds On, Min Rds On):0V
Rds On (Max) @ Id, Vgs:6Ohm @ 200mA, 0V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:150 pF @ 25 V
FET Feature:Depletion Mode
Power Dissipation (Max):1.6W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:TO-243AA (SOT-89)
Package / Case:TO-243AA
