CSD16321Q5C

CSD16321Q5C

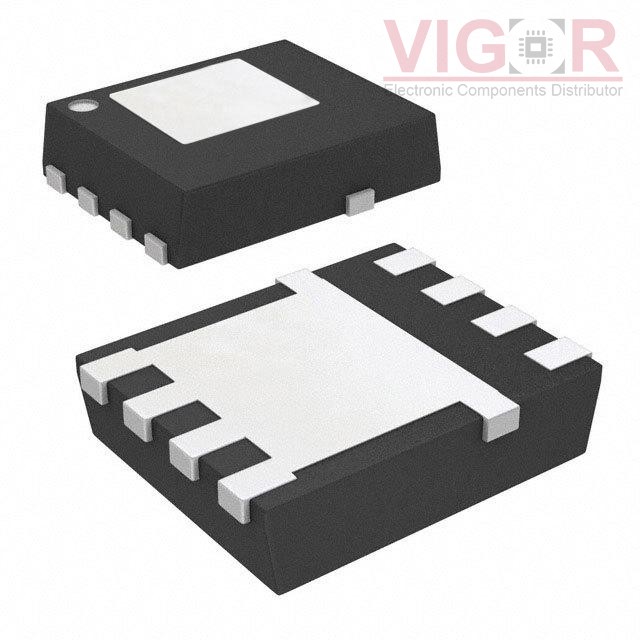

Image is for reference,
please contact us to get the real picture

Part No :

CSD16321Q5C

Manufacturer
Texas Instruments
Description
MOSFET N-CH 25V 31A/100A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
CSD16321Q5C PDF
Availability
5 pieces
Unit Price
$1.98000

Current price of CSD16321Q5C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD16321Q5C Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:31A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):3V, 8V
Rds On (Max) @ Id, Vgs:2.4mOhm @ 25A, 8V
Vgs(th) (Max) @ Id:1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:19 nC @ 4.5 V
Vgs (Max):+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds:3100 pF @ 12.5 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSON-CLIP (5x6)
Package / Case:8-PowerTDFN
