DMP2040UFDF-13

DMP2040UFDF-13

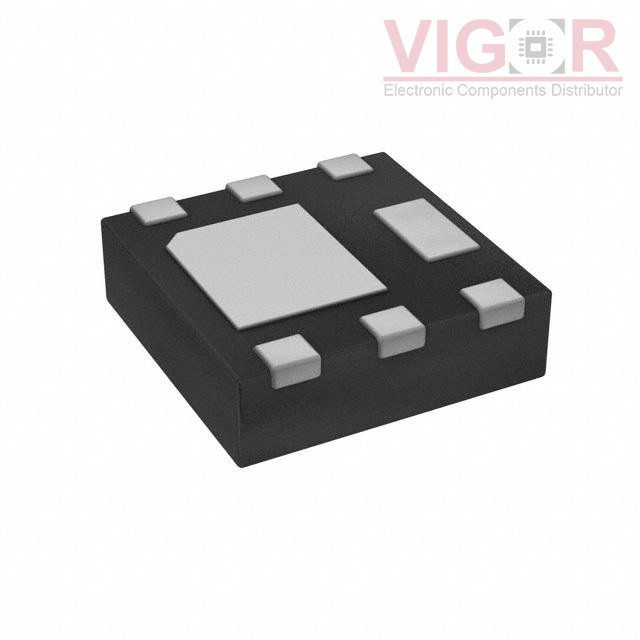

Image is for reference,
please contact us to get the real picture

Part No :

DMP2040UFDF-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET P-CH 20V 13A 6UDFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
DMP2040UFDF-13 PDF
Availability
0 pieces
Unit Price
$0.14625

Current price of DMP2040UFDF-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMP2040UFDF-13 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:13A (Tc)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:32mOhm @ 8.9A, 4.5V
Vgs(th) (Max) @ Id:1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:19 nC @ 8 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:834 pF @ 10 V
FET Feature:-
Power Dissipation (Max):1.8W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:U-DFN2020-6 (Type F)
Package / Case:6-UDFN Exposed Pad
