SCT20N120H

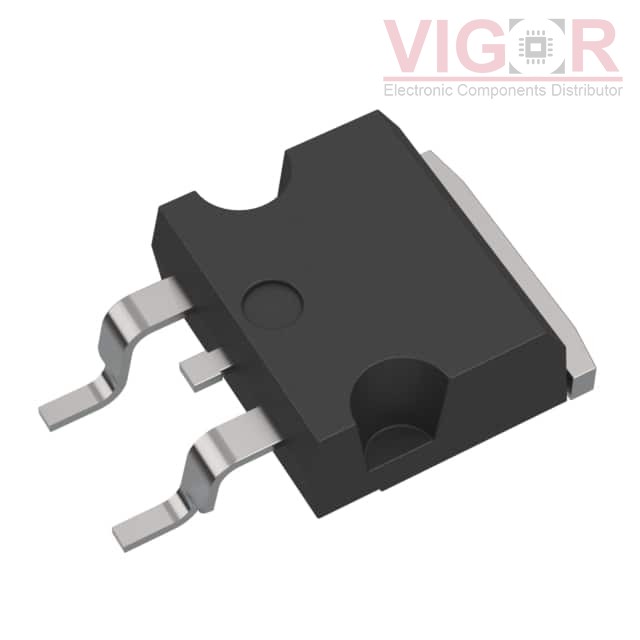

Image is for reference,
please contact us to get the real picture

Part No :

SCT20N120H

Manufacturer
STMicroelectronics
Description
SICFET N-CH 1200V 20A H2PAK-2
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
SCT20N120H PDF
Availability
36 pieces
Unit Price
$12.58000

Current price of SCT20N120H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):20V
Rds On (Max) @ Id, Vgs:290mOhm @ 10A, 20V
Vgs(th) (Max) @ Id:3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:45 nC @ 20 V
Vgs (Max):+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds:650 pF @ 400 V
FET Feature:-
Power Dissipation (Max):175W (Tc)
Operating Temperature:-55°C ~ 200°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:H2Pak-2
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
