PMZB1200UPEYL

PMZB1200UPEYL

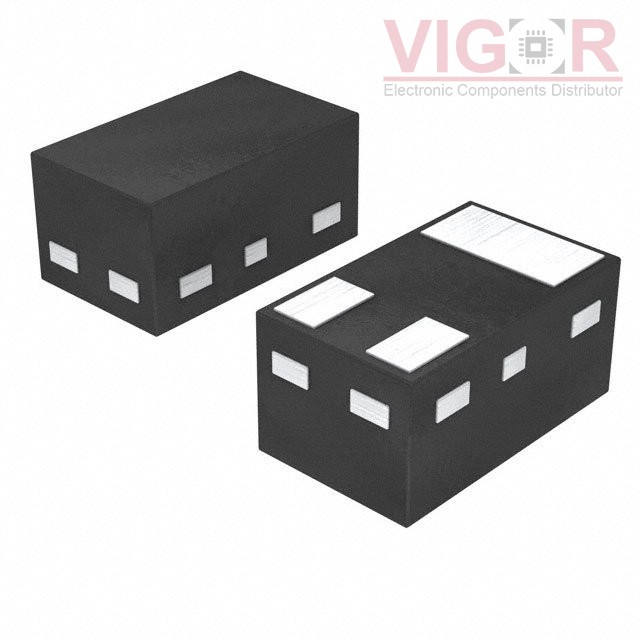

Image is for reference,
please contact us to get the real picture

Part No :

PMZB1200UPEYL

Manufacturer
Nexperia
Description
MOSFET P-CH 30V 410MA DFN1006B-3
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
PMZB1200UPEYL PDF
Availability
7274 pieces
Unit Price
$0.31000

Current price of PMZB1200UPEYL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMZB1200UPEYL Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:410mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
Rds On (Max) @ Id, Vgs:1.4Ohm @ 410mA, 4.5V
Vgs(th) (Max) @ Id:950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:1.2 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:43.2 pF @ 15 V
FET Feature:-
Power Dissipation (Max):310mW (Ta), 1.67W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DFN1006B-3
Package / Case:3-XFDFN
