NTE2396A

NTE2396A

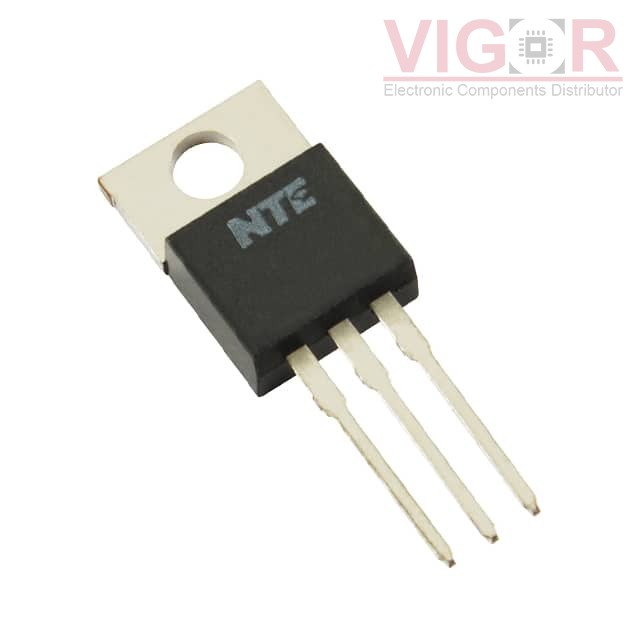

Image is for reference,
please contact us to get the real picture

Part No :

NTE2396A

Manufacturer
NTE Electronics, Inc.
Description
MOSFET N-CHANNEL 100V 33A TO220
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
NTE2396A PDF
Availability
1437 pieces
Unit Price
$1.74000

Current price of NTE2396A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE2396A Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:33A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:44mOhm @ 16A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:71 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1960 pF @ 25 V
FET Feature:-
Power Dissipation (Max):130W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220
Package / Case:TO-220-3
