CMPDM202PH TR

CMPDM202PH TR

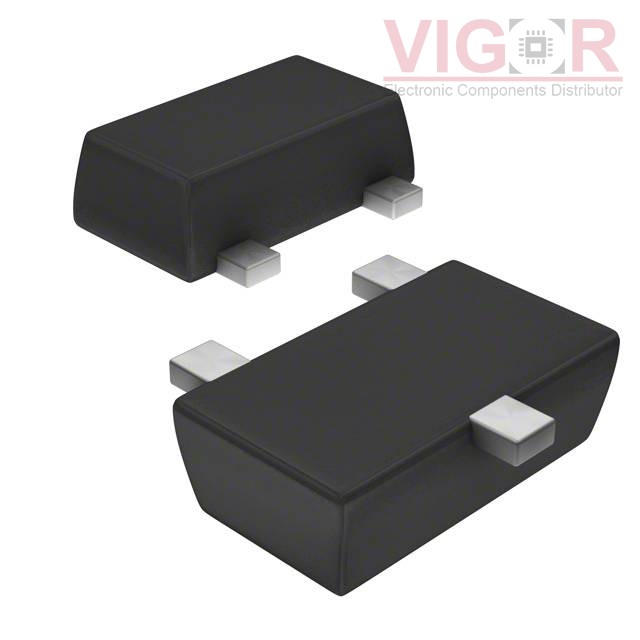

Image is for reference,
please contact us to get the real picture

Part No :

CMPDM202PH TR

Manufacturer
Central Semiconductor
Description
MOSFET P-CH 20V 2.3A SOT-23F
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
CMPDM202PH TR PDF
Availability
0 pieces
Unit Price
$0.75000

Current price of CMPDM202PH TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMPDM202PH TR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 5V
Rds On (Max) @ Id, Vgs:88mOhm @ 1.2A, 5V
Vgs(th) (Max) @ Id:1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:12 nC @ 5 V
Vgs (Max):12V
Input Capacitance (Ciss) (Max) @ Vds:800 pF @ 10 V
FET Feature:-
Power Dissipation (Max):350mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23F
Package / Case:SOT-23-3 Flat Leads
