CSD16411Q3

CSD16411Q3

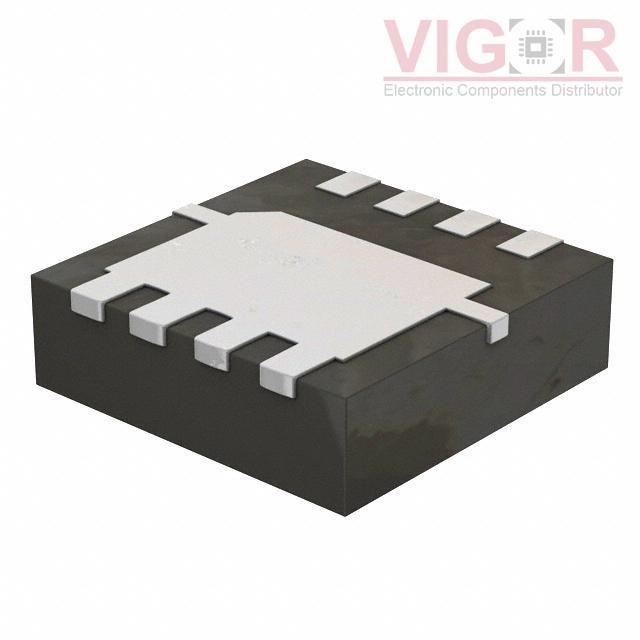

Image is for reference,
please contact us to get the real picture

Part No :

CSD16411Q3

Manufacturer
Texas Instruments
Description
MOSFET N-CH 25V 14A/56A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
CSD16411Q3 PDF
Availability
16686 pieces
Unit Price
$0.99000

Current price of CSD16411Q3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD16411Q3 Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:14A (Ta), 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:10mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:3.8 nC @ 4.5 V
Vgs (Max):+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds:570 pF @ 12.5 V
FET Feature:-
Power Dissipation (Max):2.7W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSON (3.3x3.3)
Package / Case:8-PowerVDFN
