DMP21D0UFB4-7B

DMP21D0UFB4-7B

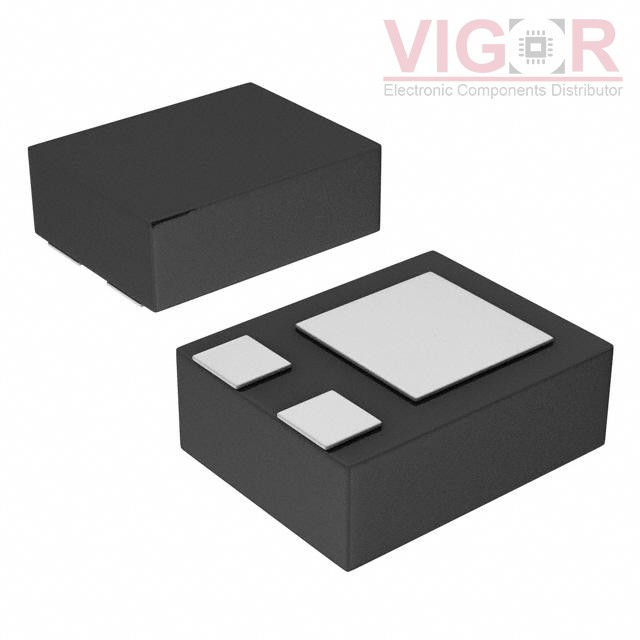

Image is for reference,
please contact us to get the real picture

Part No :

DMP21D0UFB4-7B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET P-CH 20V 770MA 3DFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
DMP21D0UFB4-7B PDF
Availability
5448 pieces
Unit Price
$0.52000

Current price of DMP21D0UFB4-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMP21D0UFB4-7B Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:770mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:495mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id:700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:1.54 nC @ 8 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:80 pF @ 10 V
FET Feature:-
Power Dissipation (Max):430mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:X2-DFN1006-3
Package / Case:3-XFDFN
