PSMN5R0-40MLHX

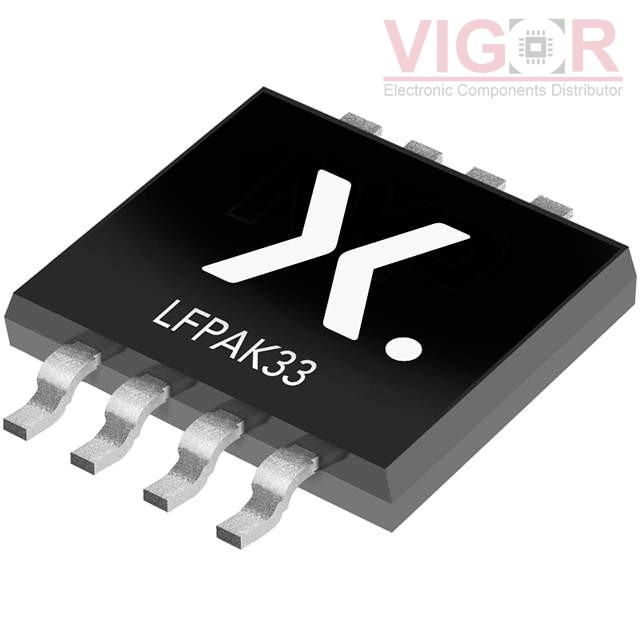

Image is for reference,
please contact us to get the real picture

Part No :: PSMN5R0-40MLHX

Manufacturer: Nexperia

Description: MOSFET N-CH 40V 85A LFPAK33

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: PSMN5R0-40MLHX PDF

Availability: 1500 pieces

Unit Price: ~~$0.73000~~

Current price of PSMN5R0-40MLHX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PSMN5R0-40MLHX Specifications

Type	Description
Series:	Automotive, AEC-Q101, TrenchMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	85A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	39 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2649 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	83W (Ta)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	LFPAK33
Package / Case:	SOT-1210, 8-LFPAK33 (5-Lead)

Please confirm the specifications of the products when ordering.
