QS5U23TR

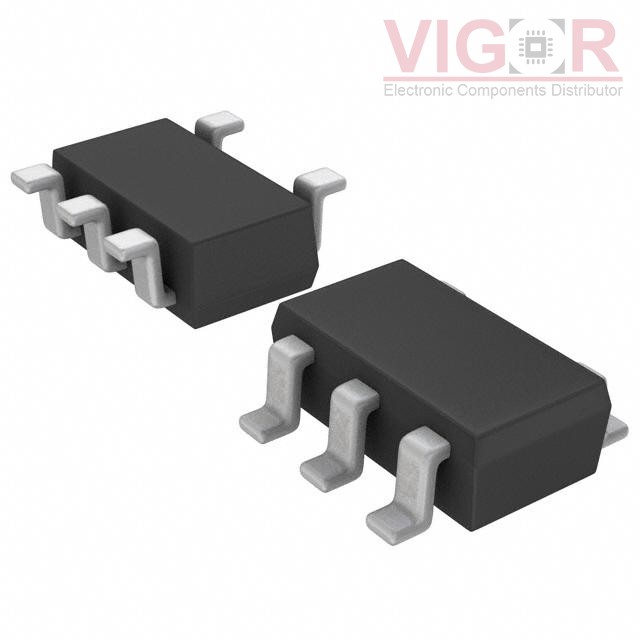

Image is for reference,
please contact us to get the real picture

Part No :: QS5U23TR

Manufacturer: ROHM Semiconductor

Description: MOSFET P-CH 20V 1.5A TSMT5

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: QS5U23TR PDF

Availability: 0 pieces

Unit Price: ~~$0.23870~~

Current price of QS5U23TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QS5U23TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	200mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	4.2 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	325 pF @ 10 V
FET Feature:	Schottky Diode (Isolated)
Power Dissipation (Max):	1.25W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TSMT5
Package / Case:	SOT-23-5 Thin, TSOT-23-5
