IRLI520GPBF

Image is for reference,
please contact us to get the real picture

Part No :: IRLI520GPBF

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 100V 7.2A TO220-3

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: IRLI520GPBF PDF

Availability: 0 pieces

Unit Price: ~~$1.03516~~

Current price of IRLI520GPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRLI520GPBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	7.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4V, 5V
Rds On (Max) @ Id, Vgs:	270mOhm @ 4.3A, 5V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	490 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	37W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220-3
Package / Case:	TO-220-3 Full Pack, Isolated Tab

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

R5021ANX

MOSFET N-CH 500V 21A TO220FM

HOT

BSB012NE2LXIXUMA1

MOSFET N-CH 25V 170A 2WDSON

HOT

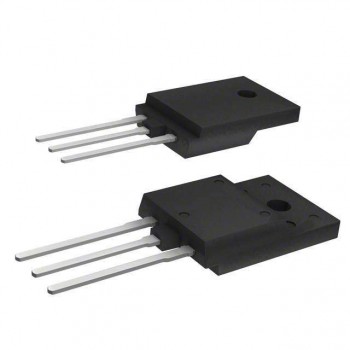

STFW69N65M5
