ATP405-TL-H

ATP405-TL-H

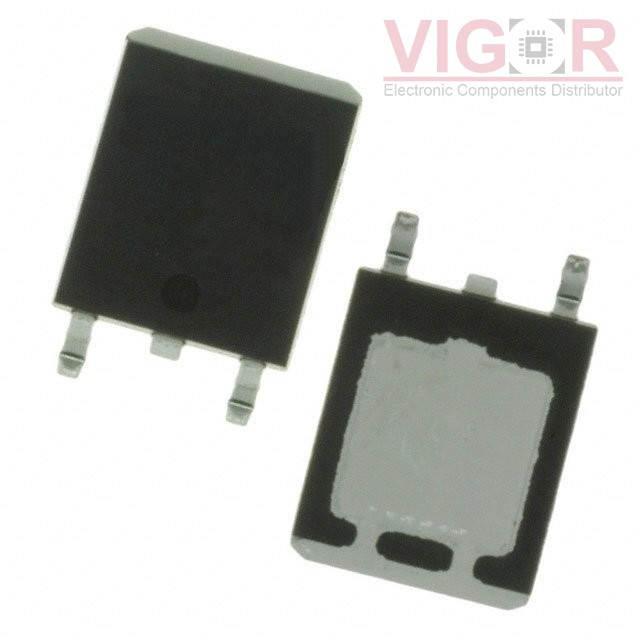

Image is for reference,
please contact us to get the real picture

Part No :

ATP405-TL-H

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET N-CH 100V 40A ATPAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
ATP405-TL-H PDF
Availability
581827000 pieces
Unit Price
$1.68000

Current price of ATP405-TL-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATP405-TL-H Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:40A (Ta)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:33mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:68 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4000 pF @ 20 V
FET Feature:-
Power Dissipation (Max):70W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:ATPAK
Package / Case:ATPAK (2 leads+tab)
