TSM260P02CX6 RFG

TSM260P02CX6 RFG

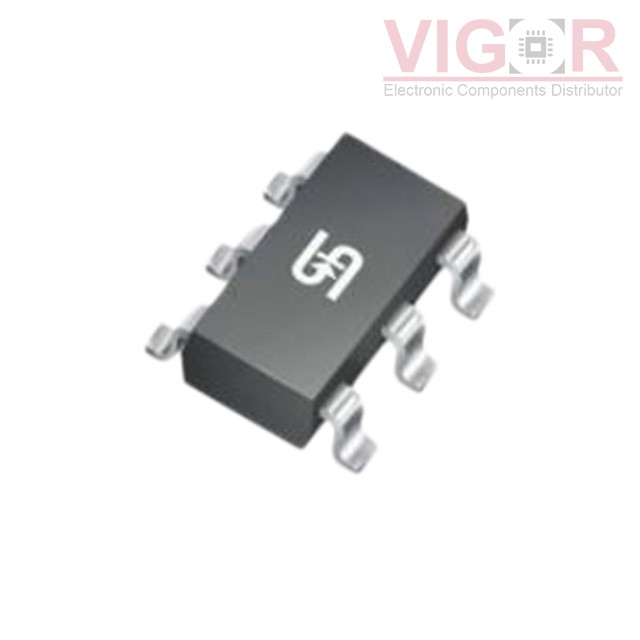

Image is for reference,
please contact us to get the real picture

Part No :

TSM260P02CX6 RFG

Manufacturer
TSC (Taiwan Semiconductor)
Description
MOSFET P-CHANNEL 20V 6.5A SOT26
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
TSM260P02CX6 RFG PDF
Availability
9576 pieces
Unit Price
$0.62000

Current price of TSM260P02CX6 RFG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM260P02CX6 RFG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:26mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:19.5 nC @ 4.5 V
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:1670 pF @ 15 V
FET Feature:-
Power Dissipation (Max):1.56W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-26
Package / Case:SOT-23-6
