PSMN3R9-25MLC,115

PSMN3R9-25MLC,115

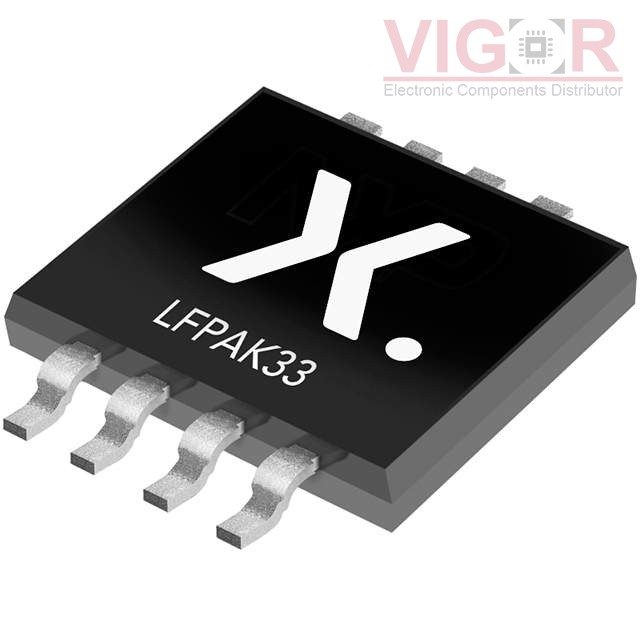

Image is for reference,
please contact us to get the real picture

Part No :

PSMN3R9-25MLC,115

Manufacturer
Nexperia
Description
MOSFET N-CH 25V 70A LFPAK33
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
PSMN3R9-25MLC,115 PDF
Availability
341 pieces
Unit Price
$0.56000

Current price of PSMN3R9-25MLC,115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PSMN3R9-25MLC,115 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:70A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:4.15mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:21.5 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1524 pF @ 12.5 V
FET Feature:-
Power Dissipation (Max):69W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK33
Package / Case:SOT-1210, 8-LFPAK33
