PHD20N06T,118

PHD20N06T,118

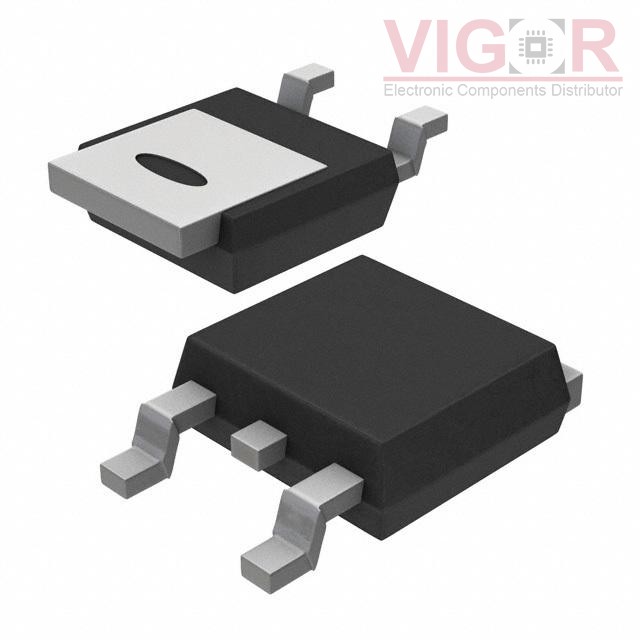

Image is for reference,
please contact us to get the real picture

Part No :

PHD20N06T,118

Manufacturer
Nexperia
Description
MOSFET N-CH 55V 18A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
PHD20N06T,118 PDF
Availability
0 pieces
Unit Price
$0.25175

Current price of PHD20N06T,118 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PHD20N06T,118 Specifications
Type Description
Series:TrenchMOS™
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):55 V
Current - Continuous Drain (Id) @ 25°C:18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:77mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:11 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:422 pF @ 25 V
FET Feature:-
Power Dissipation (Max):51W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
