IMZ120R030M1HXKSA1

IMZ120R030M1HXKSA1

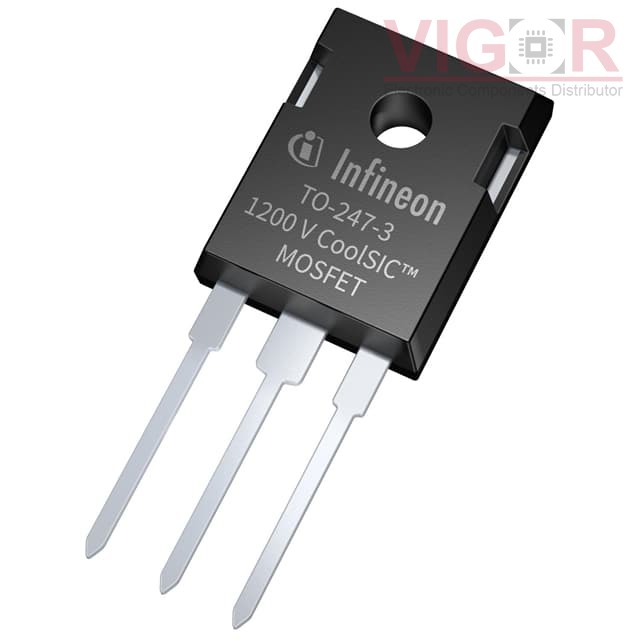

Image is for reference,
please contact us to get the real picture

Part No :

IMZ120R030M1HXKSA1

Manufacturer
IR (Infineon Technologies)
Description
SICFET N-CH 1.2KV 56A TO247-4
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
IMZ120R030M1HXKSA1 PDF
Availability
0 pieces
Unit Price
$24.07000

Current price of IMZ120R030M1HXKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMZ120R030M1HXKSA1 Specifications
Type Description
Series:CoolSiC™
Package:Tube
Part Status:Active
FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):1.2 kV
Current - Continuous Drain (Id) @ 25°C:56A (Tc)
Drive Voltage (Max Rds On, Min Rds On):15V, 18V
Rds On (Max) @ Id, Vgs:40mOhm @ 25A, 18V
Vgs(th) (Max) @ Id:5.7V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:63 nC @ 18 V
Vgs (Max):+23V, -7V
Input Capacitance (Ciss) (Max) @ Vds:2.12 nF @ 800 V
FET Feature:-
Power Dissipation (Max):227W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:PG-TO247-4-1
Package / Case:TO-247-4
