DMN1054UCB4-7

DMN1054UCB4-7

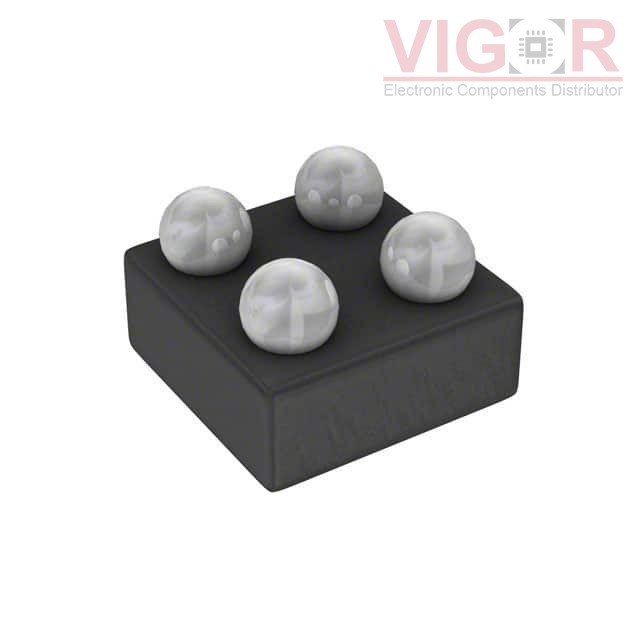

Image is for reference,
please contact us to get the real picture

Part No :

DMN1054UCB4-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET N-CH 8V 2.7A X1-WLB0808-4
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
DMN1054UCB4-7 PDF
Availability
332 pieces
Unit Price
$0.66000

Current price of DMN1054UCB4-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMN1054UCB4-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):8 V
Current - Continuous Drain (Id) @ 25°C:2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.2V, 4.5V
Rds On (Max) @ Id, Vgs:42mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:15 nC @ 4.5 V
Vgs (Max):±5V
Input Capacitance (Ciss) (Max) @ Vds:908 pF @ 6 V
FET Feature:-
Power Dissipation (Max):740mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:X1-WLB0808-4
Package / Case:4-XFBGA, WLBGA
