DMN30H4D0LFDE-7

DMN30H4D0LFDE-7

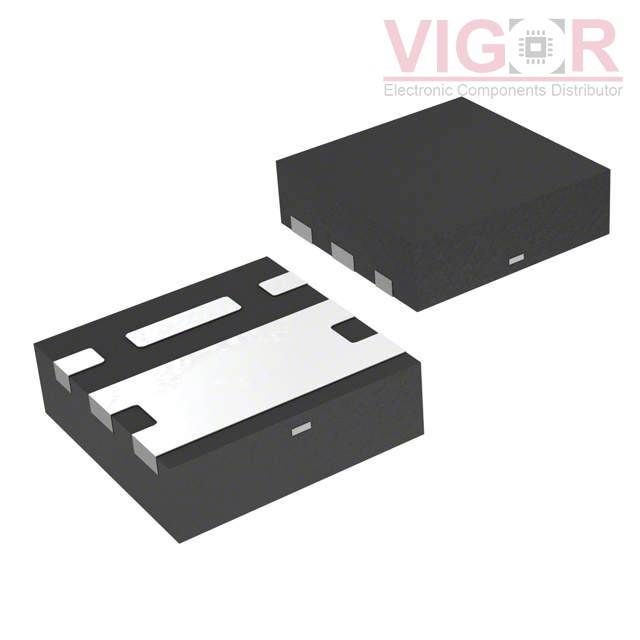

Image is for reference,
please contact us to get the real picture

Part No :

DMN30H4D0LFDE-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET N-CH 300V 550MA 6UDFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
DMN30H4D0LFDE-7 PDF
Availability
19134 pieces
Unit Price
$0.55000

Current price of DMN30H4D0LFDE-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMN30H4D0LFDE-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):300 V
Current - Continuous Drain (Id) @ 25°C:550mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.7V, 10V
Rds On (Max) @ Id, Vgs:4Ohm @ 300mA, 10V
Vgs(th) (Max) @ Id:2.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:7.6 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:187.3 pF @ 25 V
FET Feature:-
Power Dissipation (Max):630mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:U-DFN2020-6 (Type E)
Package / Case:6-PowerUDFN
