PMCM4401VNEAZ

PMCM4401VNEAZ

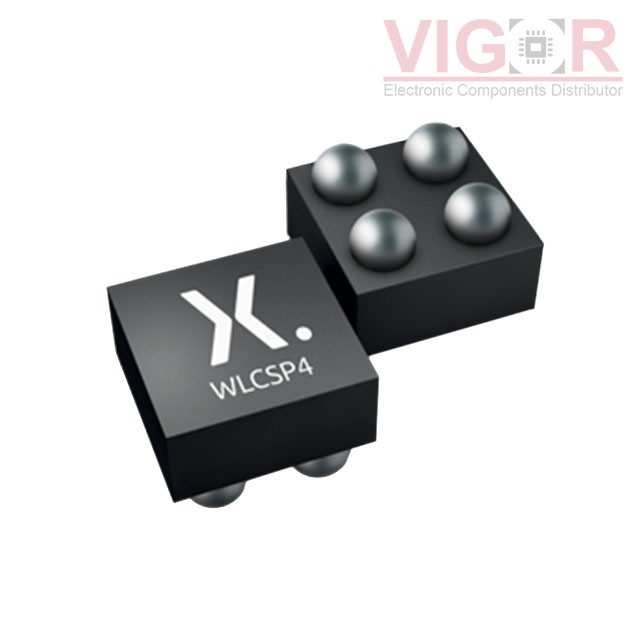

Image is for reference,
please contact us to get the real picture

Part No :

PMCM4401VNEAZ

Manufacturer
Nexperia
Description
MOSFET N-CH 12V 4.7A 4WLCSP
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
PMCM4401VNEAZ PDF
Availability
17965 pieces
Unit Price
$0.39000

Current price of PMCM4401VNEAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMCM4401VNEAZ Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):12 V
Current - Continuous Drain (Id) @ 25°C:4.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
Rds On (Max) @ Id, Vgs:42mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id:900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:9 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:335 pF @ 6 V
FET Feature:-
Power Dissipation (Max):400mW (Ta), 12.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:4-WLCSP (0.78x0.78)
Package / Case:4-XFBGA, WLCSP
