NTHL060N090SC1

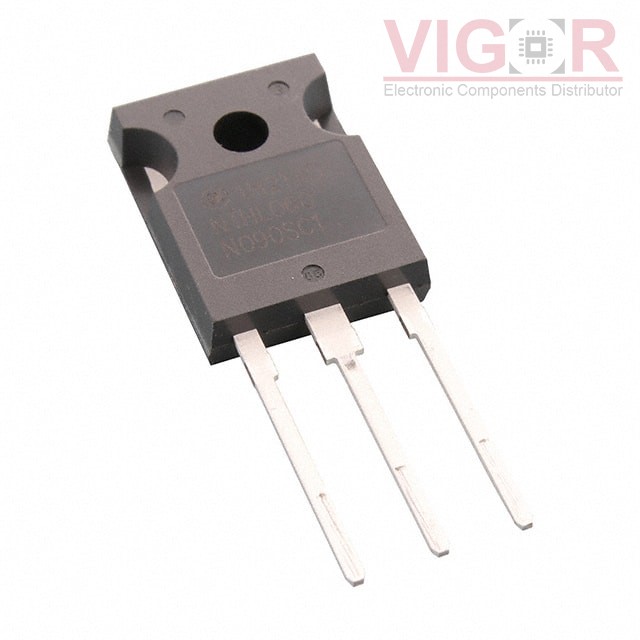

Image is for reference,
please contact us to get the real picture

Part No :: NTHL060N090SC1

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: SICFET N-CH 900V 46A TO247-3

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: NTHL060N090SC1 PDF

Availability: 434 pieces

Unit Price: ~~$10.21000~~

Current price of NTHL060N090SC1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTHL060N090SC1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	900 V
Current - Continuous Drain (Id) @ 25°C:	46A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V
Rds On (Max) @ Id, Vgs:	84mOhm @ 20A, 15V
Vgs(th) (Max) @ Id:	4.3V @ 5mA
Gate Charge (Qg) (Max) @ Vgs:	87 nC @ 15 V
Vgs (Max):	+19V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	1770 pF @ 450 V
FET Feature:	-
Power Dissipation (Max):	221W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247-3
Package / Case:	TO-247-3 Variant

Please confirm the specifications of the products when ordering.
