FK4B01120L1

FK4B01120L1

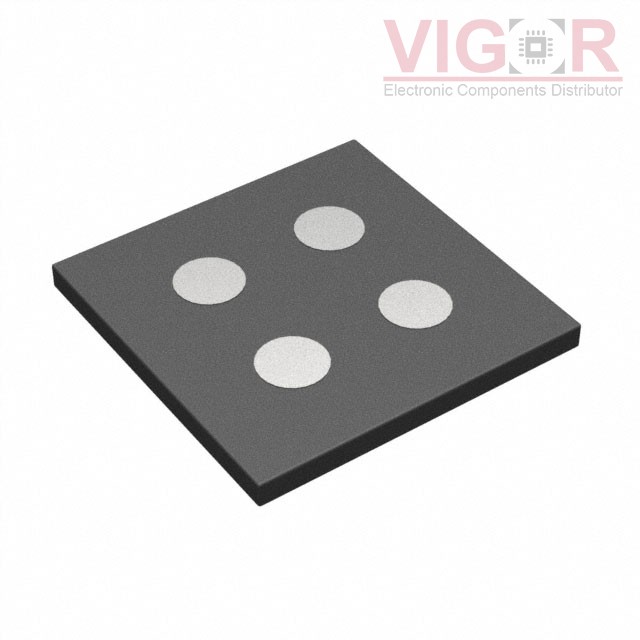

Image is for reference,
please contact us to get the real picture

Part No :

FK4B01120L1

Manufacturer
Panasonic
Description
MOSFET N-CH 12V 3.9A ULGA004
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
FK4B01120L1 PDF
Availability
980 pieces
Unit Price
$0.77000

Current price of FK4B01120L1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FK4B01120L1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):12 V
Current - Continuous Drain (Id) @ 25°C:3.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
Rds On (Max) @ Id, Vgs:24mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:1V @ 394µA
Gate Charge (Qg) (Max) @ Vgs:7 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:490 pF @ 10 V
FET Feature:-
Power Dissipation (Max):370mW (Ta)
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:ULGA004-W-1010-RA01
Package / Case:4-XFLGA, CSP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT FQI13N50CTU

FQI13N50CTU

MOSFET N-CH 500V 13A I2PAK
HOT BSZ0502NSIATMA1

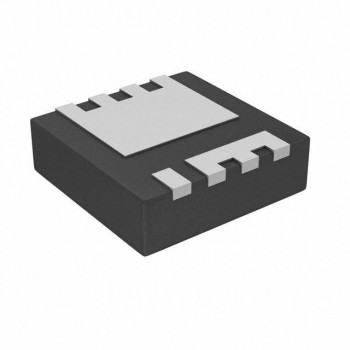

BSZ0502NSIATMA1

MOSFET N-CH 30V 22A/40A TSDSON
HOT MIC94052BC6TR

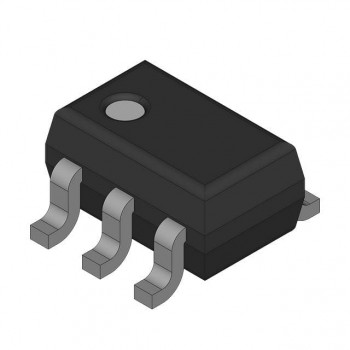

MIC94052BC6TR
