IPT60R022S7XTMA1

IPT60R022S7XTMA1

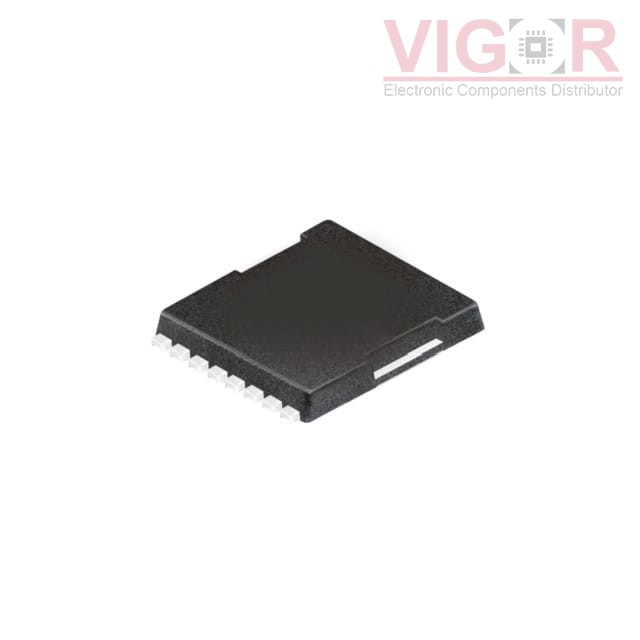

Image is for reference,
please contact us to get the real picture

Part No :

IPT60R022S7XTMA1

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 600V 23A 8HSOF
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
IPT60R022S7XTMA1 PDF
Availability
1954 pieces
Unit Price
$13.67000

Current price of IPT60R022S7XTMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPT60R022S7XTMA1 Specifications
Type Description
Series:CoolMOS™S7
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):600 V
Current - Continuous Drain (Id) @ 25°C:23A (Tc)
Drive Voltage (Max Rds On, Min Rds On):12V
Rds On (Max) @ Id, Vgs:22mOhm @ 23A, 12V
Vgs(th) (Max) @ Id:4.5V @ 1.44mA
Gate Charge (Qg) (Max) @ Vgs:150 nC @ 12 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:5639 pF @ 300 V
FET Feature:-
Power Dissipation (Max):390W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-HSOF-8-2
Package / Case:8-PowerSFN
