SCTH100N65G2-7AG

SCTH100N65G2-7AG

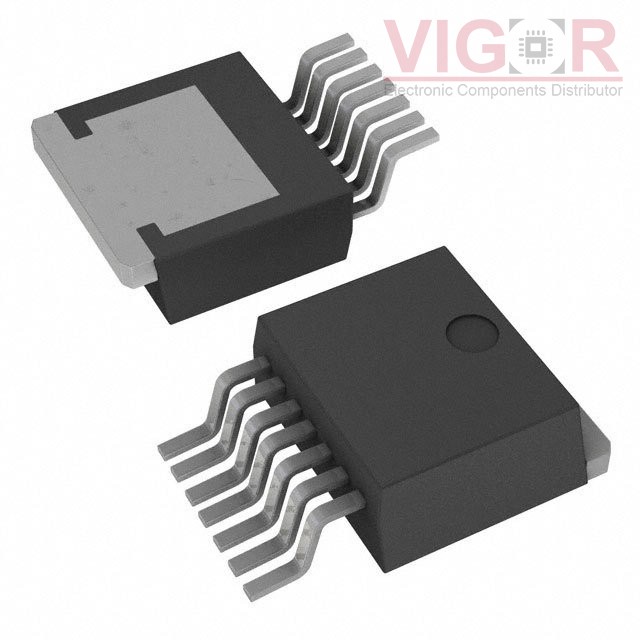

Image is for reference,
please contact us to get the real picture

Part No :

SCTH100N65G2-7AG

Manufacturer
STMicroelectronics
Description
SICFET N-CH 650V 95A H2PAK-7
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SCTH100N65G2-7AG PDF
Availability
22 pieces
Unit Price
$27.92000

Current price of SCTH100N65G2-7AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SCTH100N65G2-7AG Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:95A (Tc)
Drive Voltage (Max Rds On, Min Rds On):18V
Rds On (Max) @ Id, Vgs:26mOhm @ 50A, 18V
Vgs(th) (Max) @ Id:5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs:162 nC @ 18 V
Vgs (Max):+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds:3315 pF @ 520 V
FET Feature:-
Power Dissipation (Max):360W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:H2PAK-7
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
