DMT3006LFDF-7

DMT3006LFDF-7

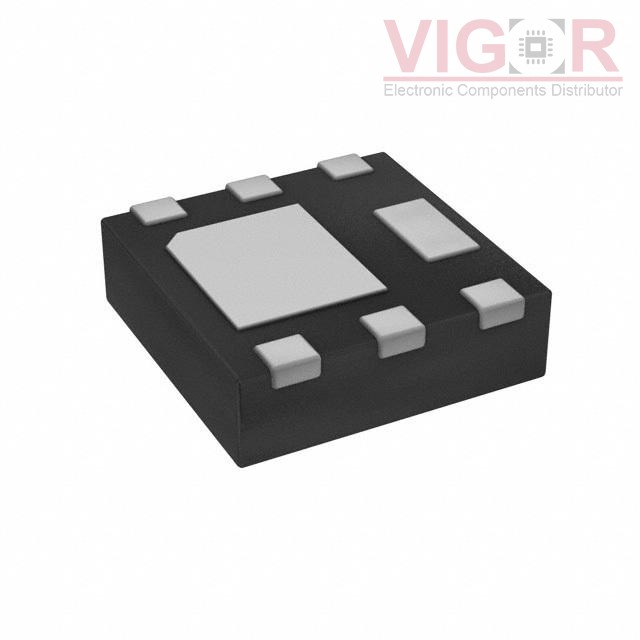

Image is for reference,
please contact us to get the real picture

Part No :

DMT3006LFDF-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET N-CH 30V 14.1A 6UDFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
DMT3006LFDF-7 PDF
Availability
15755 pieces
Unit Price
$0.53000

Current price of DMT3006LFDF-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMT3006LFDF-7 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:14.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On):3.7V, 10V
Rds On (Max) @ Id, Vgs:7mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:22.6 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1320 pF @ 15 V
FET Feature:-
Power Dissipation (Max):800mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:U-DFN2020-6 (Type F)
Package / Case:6-UDFN Exposed Pad
