STB80NF55-06-1

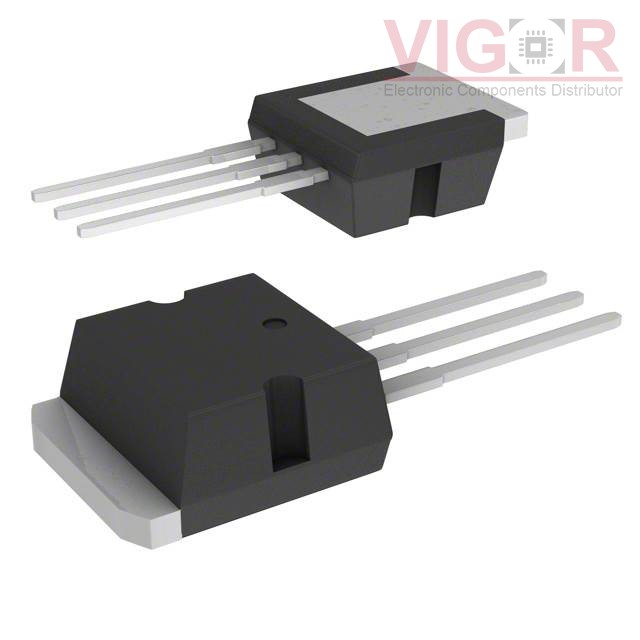

Image is for reference,
please contact us to get the real picture

Part No :

STB80NF55-06-1

Manufacturer
STMicroelectronics
Description
MOSFET N-CH 55V 80A I2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
STB80NF55-06-1 PDF
Availability
500 pieces
Unit Price
$2.32000

Current price of STB80NF55-06-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:STripFET™ II
Package:Tube
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):55 V
Current - Continuous Drain (Id) @ 25°C:80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:6.5mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:189 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4400 pF @ 25 V
FET Feature:-
Power Dissipation (Max):300W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:I2PAK
Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
