NTMYS025N06CLTWG

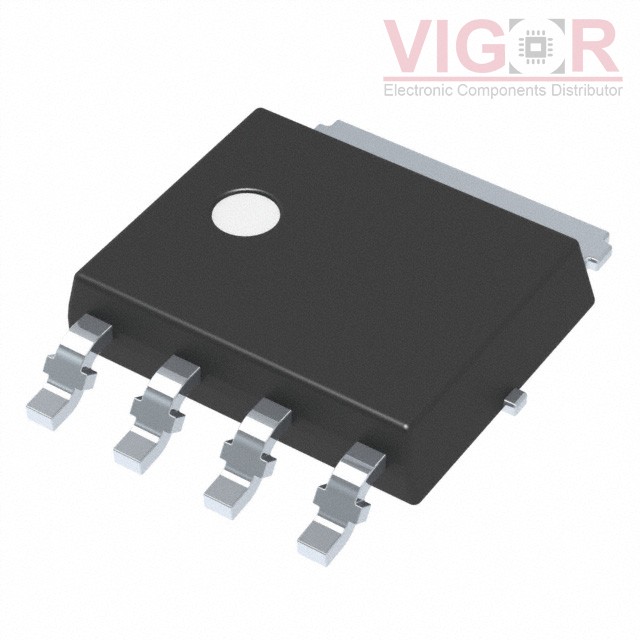

Image is for reference,
please contact us to get the real picture

Part No :: NTMYS025N06CLTWG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 60V 8.5A/21A 4LFPAK

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: NTMYS025N06CLTWG PDF

Availability: 0 pieces

Unit Price: ~~$0.99000~~

Current price of NTMYS025N06CLTWG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTMYS025N06CLTWG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	8.5A (Ta), 21A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	27.5mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id:	2V @ 13µA
Gate Charge (Qg) (Max) @ Vgs:	5.8 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	330 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3.8W (Ta), 24W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	4-LFPAK
Package / Case:	SOT-1023, 4-LFPAK

Please confirm the specifications of the products when ordering.
