IMW120R045M1XKSA1

IMW120R045M1XKSA1

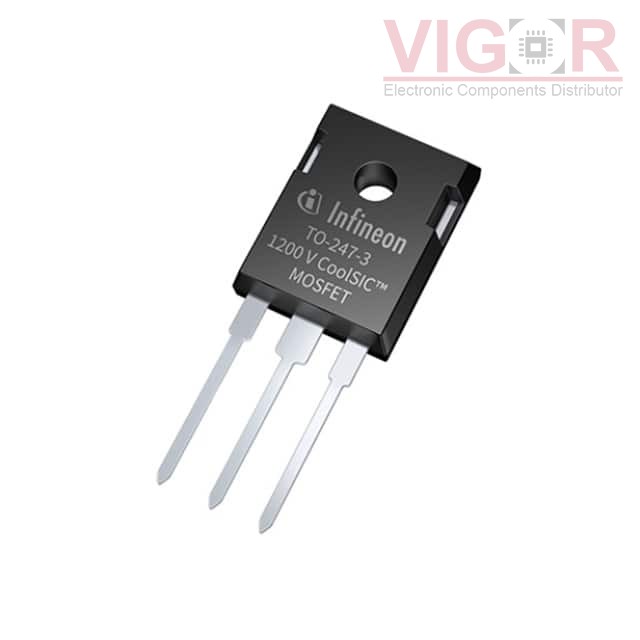

Image is for reference,
please contact us to get the real picture

Part No :

IMW120R045M1XKSA1

Manufacturer
IR (Infineon Technologies)
Description
SICFET N-CH 1.2KV 52A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
IMW120R045M1XKSA1 PDF
Availability
251 pieces
Unit Price
$17.66000

Current price of IMW120R045M1XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMW120R045M1XKSA1 Specifications
Type Description
Series:CoolSiC™
Package:Tube
Part Status:Active
FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):1.2 kV
Current - Continuous Drain (Id) @ 25°C:52A (Tc)
Drive Voltage (Max Rds On, Min Rds On):15V
Rds On (Max) @ Id, Vgs:59mOhm @ 20A, 15V
Vgs(th) (Max) @ Id:5.7V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:52 nC @ 15 V
Vgs (Max):+20V, -10V
Input Capacitance (Ciss) (Max) @ Vds:1.9 nF @ 800 V
FET Feature:-
Power Dissipation (Max):228W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:PG-TO247-3-41
Package / Case:TO-247-3
