NTLJS5D0N03CTAG

NTLJS5D0N03CTAG

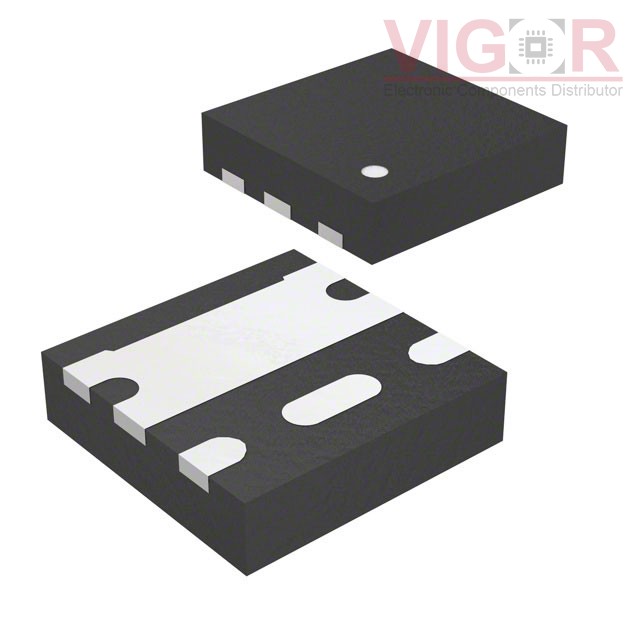

Image is for reference,
please contact us to get the real picture

Part No :

NTLJS5D0N03CTAG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET N-CH 30V 11.2A 6PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
NTLJS5D0N03CTAG PDF
Availability
840 pieces
Unit Price
$0.91000

Current price of NTLJS5D0N03CTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTLJS5D0N03CTAG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:11.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:4.38mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:18 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1255 pF @ 15 V
FET Feature:-
Power Dissipation (Max):860mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-PQFN (2x2)
Package / Case:6-PowerWDFN
