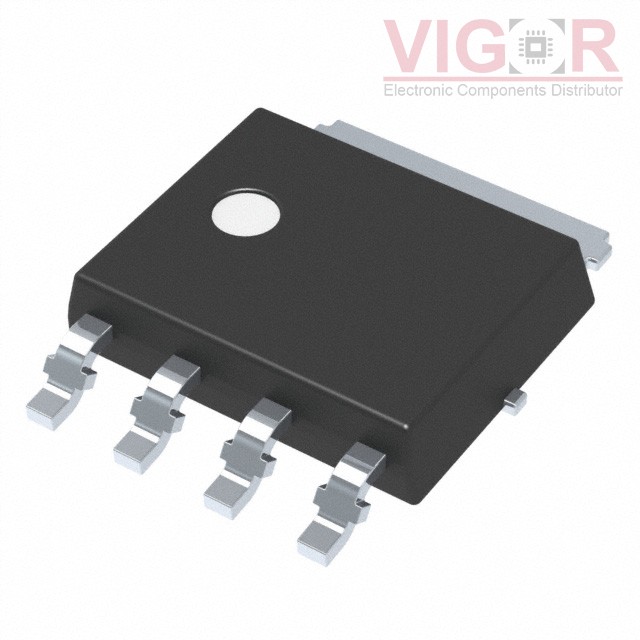

NVMYS2D9N04CLTWG

Image is for reference,
please contact us to get the real picture

Part No :: NVMYS2D9N04CLTWG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 40V 27A/110A LFPAK4

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: NVMYS2D9N04CLTWG PDF

Availability: 0 pieces

Unit Price: ~~$0.45615~~

Current price of NVMYS2D9N04CLTWG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NVMYS2D9N04CLTWG Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	27A (Ta), 110A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	2.8mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	2V @ 60µA
Gate Charge (Qg) (Max) @ Vgs:	35 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2100 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	3.7W (Ta), 68W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	LFPAK4 (5x6)
Package / Case:	SOT-1023, 4-LFPAK

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

IPS031N03LGAKMA1

MOSFET N-CH 30V 90A TO251-31

HOT

IRFZ44ZSTRRPBF

MOSFET N-CH 55V 51A D2PAK

HOT

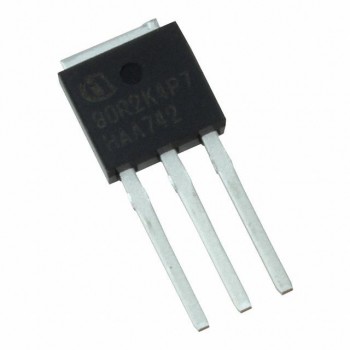

IPU95R1K2P7AKMA1
