TSM150P04LCS RLG

TSM150P04LCS RLG

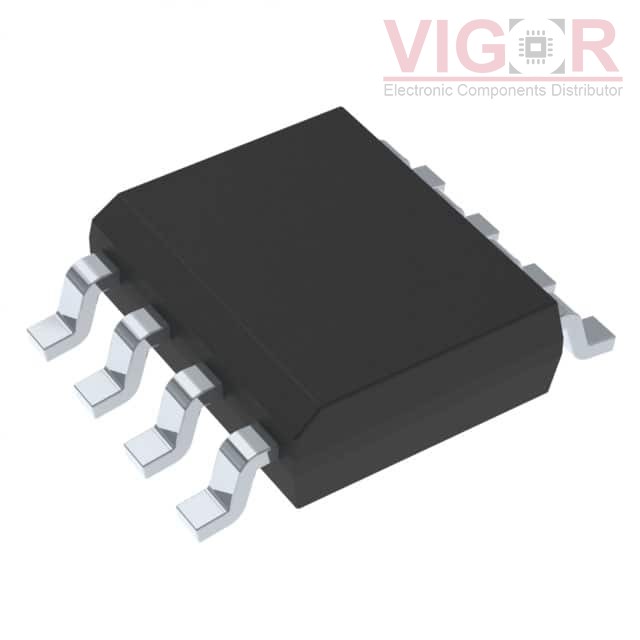

Image is for reference,
please contact us to get the real picture

Part No :

TSM150P04LCS RLG

Manufacturer
TSC (Taiwan Semiconductor)
Description
MOSFET P-CHANNEL 40V 22A 8SOP
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
TSM150P04LCS RLG PDF
Availability
9418 pieces
Unit Price
$0.82000

Current price of TSM150P04LCS RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM150P04LCS RLG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:15mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:48 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2783 pF @ 20 V
FET Feature:-
Power Dissipation (Max):12.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-SOP
Package / Case:8-SOIC (0.154", 3.90mm Width)
