NTHD4P02FT1G

NTHD4P02FT1G

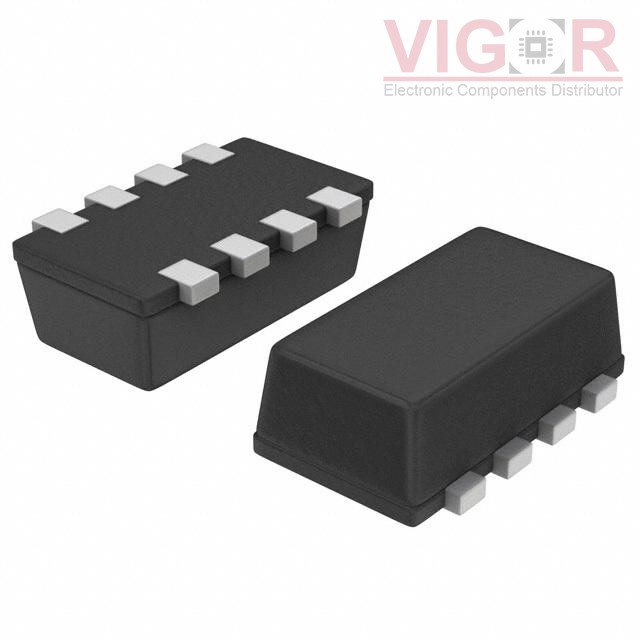

Image is for reference,
please contact us to get the real picture

Part No :

NTHD4P02FT1G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET P-CH 20V 2.2A CHIPFET
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
NTHD4P02FT1G PDF
Availability
2375 pieces
Unit Price
$0.50000

Current price of NTHD4P02FT1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTHD4P02FT1G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:2.2A (Tj)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:155mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @ Id:1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:6 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:300 pF @ 10 V
FET Feature:Schottky Diode (Isolated)
Power Dissipation (Max):1.1W (Tj)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:ChipFET™
Package / Case:8-SMD, Flat Lead
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
