NTMYS2D2N06CLTWG

NTMYS2D2N06CLTWG

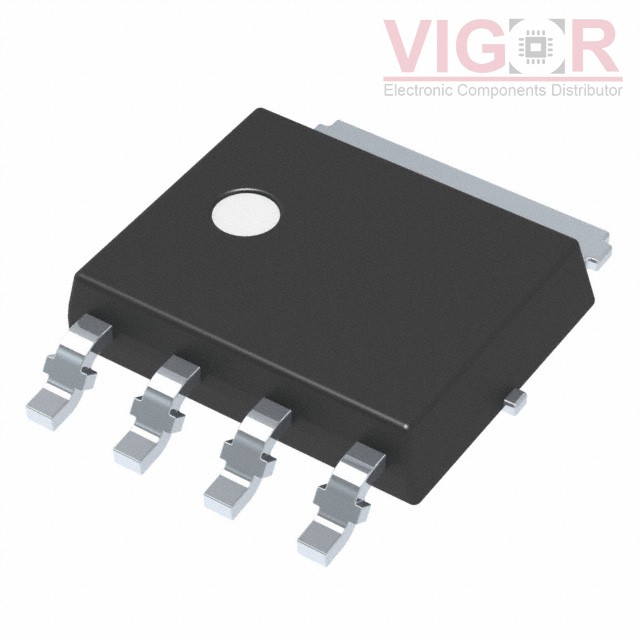

Image is for reference,
please contact us to get the real picture

Part No :

NTMYS2D2N06CLTWG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET N-CH 60V 31A/185A LFPAK4
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
NTMYS2D2N06CLTWG PDF
Availability
12000 pieces
Unit Price
$1.11300

Current price of NTMYS2D2N06CLTWG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTMYS2D2N06CLTWG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:31A (Ta), 185A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:2V @ 180µA
Gate Charge (Qg) (Max) @ Vgs:69 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4850 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.9W (Ta), 134W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK4 (5x6)
Package / Case:SOT-1023, 4-LFPAK
