CSD16401Q5

CSD16401Q5

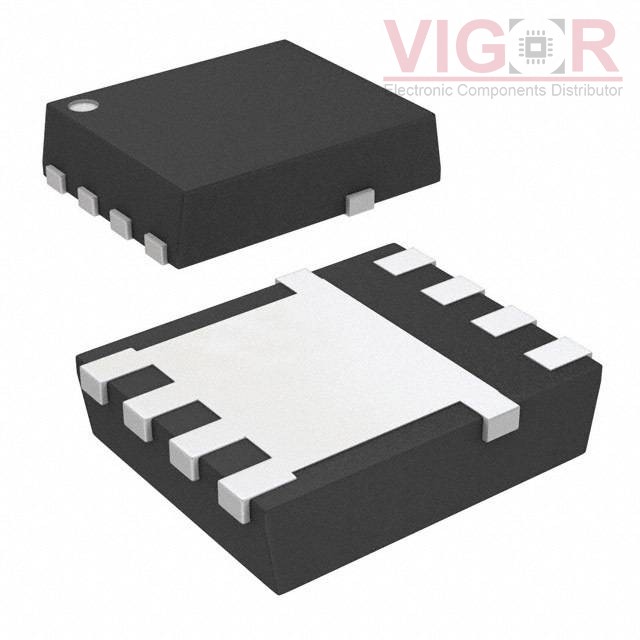

Image is for reference,
please contact us to get the real picture

Part No :

CSD16401Q5

Manufacturer
Texas Instruments
Description
MOSFET N-CH 25V 38A/100A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
CSD16401Q5 PDF
Availability
1555 pieces
Unit Price
$2.46000

Current price of CSD16401Q5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD16401Q5 Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:38A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.6mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:29 nC @ 4.5 V
Vgs (Max):+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds:4100 pF @ 12.5 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSON-CLIP (5x6)
Package / Case:8-PowerTDFN
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT FDMC4435BZ-F126

FDMC4435BZ-F126

MOSFET P-CH 30V 8.5A/18A 8MLP
HOT RS1E320GNTB

RS1E320GNTB

MOSFET N-CH 30V 32A 8HSOP

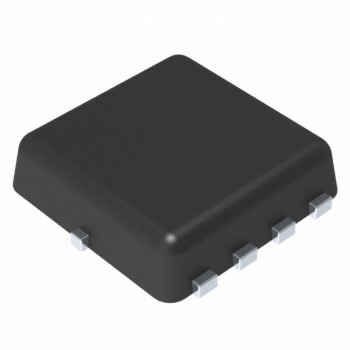

HOT CMS25N03V8-HF
