CSD13381F4

CSD13381F4

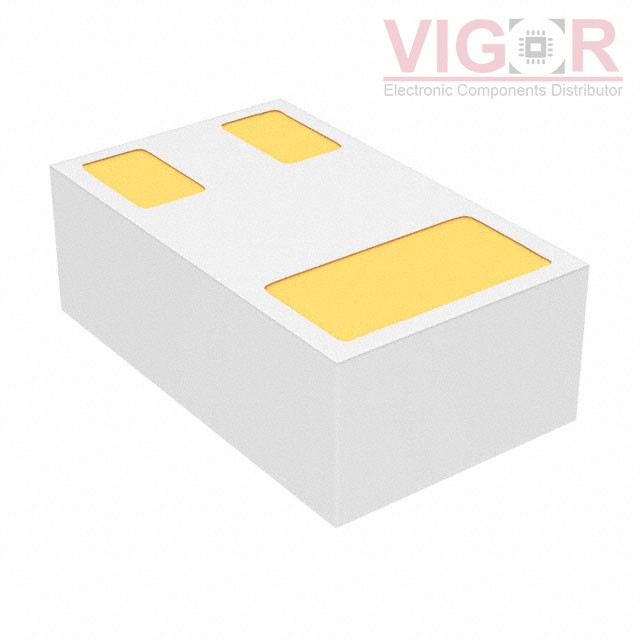

Image is for reference,
please contact us to get the real picture

Part No :

CSD13381F4

Manufacturer
Texas Instruments
Description
MOSFET N-CH 12V 2.1A 3PICOSTAR
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
CSD13381F4 PDF
Availability
0 pieces
Unit Price
$0.44000

Current price of CSD13381F4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD13381F4 Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):12 V
Current - Continuous Drain (Id) @ 25°C:2.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:180mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:1.4 nC @ 4.5 V
Vgs (Max):8V
Input Capacitance (Ciss) (Max) @ Vds:200 pF @ 6 V
FET Feature:-
Power Dissipation (Max):500mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:3-PICOSTAR
Package / Case:3-XFDFN
