TPN3R704PL,L1Q

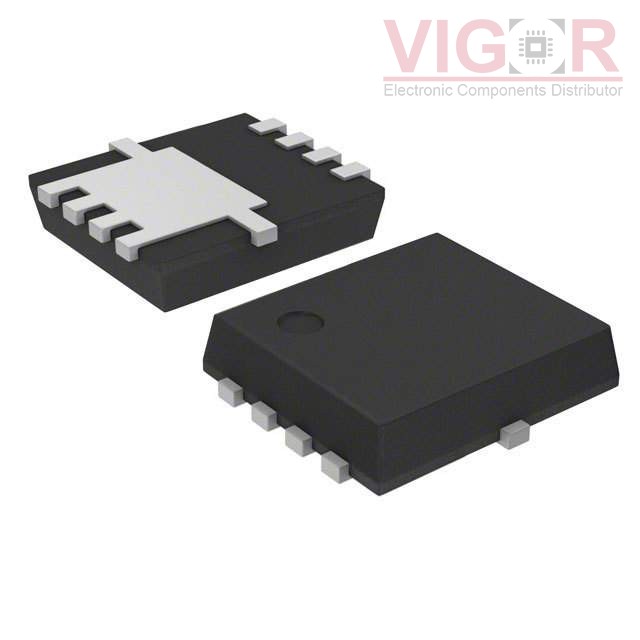

Image is for reference,
please contact us to get the real picture

Part No :

TPN3R704PL,L1Q

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
MOSFET N-CH 40V 80A 8TSON
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
TPN3R704PL,L1Q PDF
Availability
18735 pieces
Unit Price
$0.74000

Current price of TPN3R704PL,L1Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:U-MOSIX-H
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:3.7mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:2.4V @ 0.2mA
Gate Charge (Qg) (Max) @ Vgs:27 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2500 pF @ 20 V
FET Feature:-
Power Dissipation (Max):630mW (Ta), 86W (Tc)
Operating Temperature:175°C
Mounting Type:Surface Mount
Supplier Device Package:8-TSON Advance (3.3x3.3)
Package / Case:8-PowerVDFN
