TSM680P06CP ROG

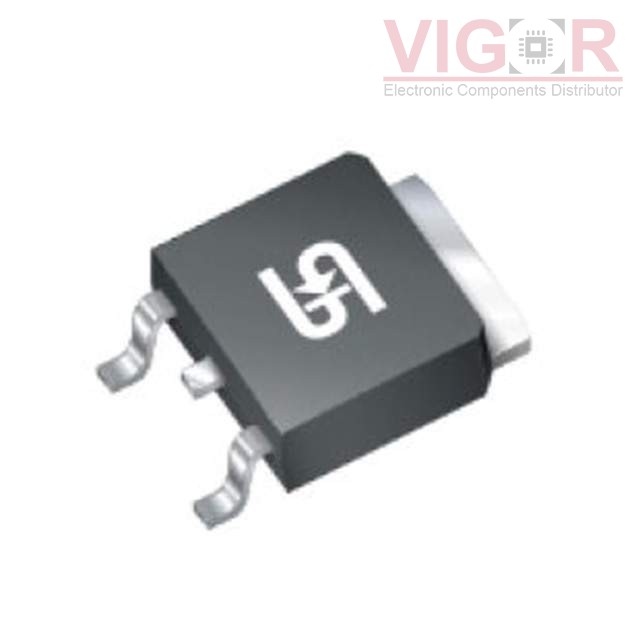

Image is for reference,
please contact us to get the real picture

Part No :

TSM680P06CP ROG

Manufacturer
TSC (Taiwan Semiconductor)
Description
MOSFET P-CHANNEL 60V 18A TO252
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
TSM680P06CP ROG PDF
Availability
68 pieces
Unit Price
$0.86000

Current price of TSM680P06CP ROG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:68mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:16.4 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:870 pF @ 30 V
FET Feature:-
Power Dissipation (Max):20W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:TO-252, (D-Pak)
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
