AON3402

AON3402

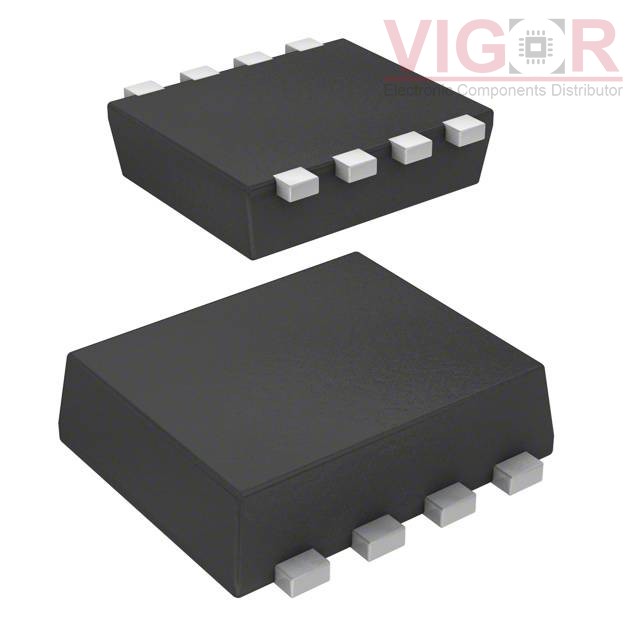

Image is for reference,
please contact us to get the real picture

Part No :

AON3402

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET N-CH 20V 12.6A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
AON3402 PDF
Availability
0 pieces
Unit Price
$0.28710

Current price of AON3402 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AON3402 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:12.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:13mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:17.9 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:1810 pF @ 10 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFN (2.9x2.3)
Package / Case:8-SMD, Flat Lead
