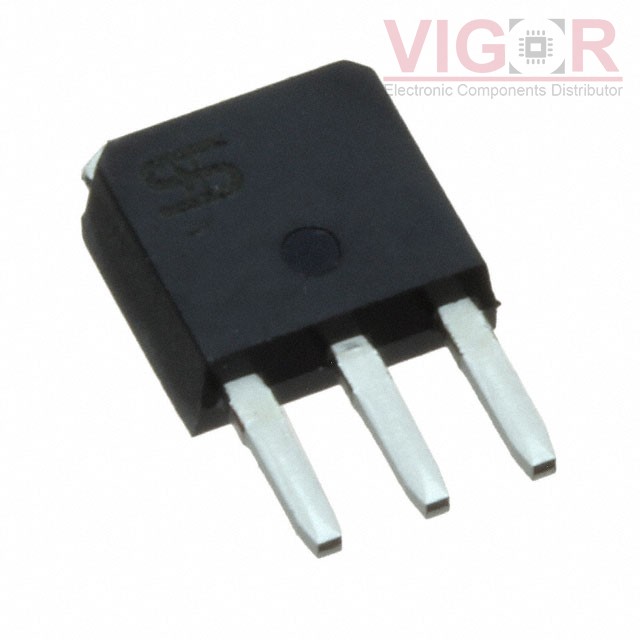

TSM680P06CH X0G

TSM680P06CH X0G

Image is for reference,
please contact us to get the real picture

Part No :

TSM680P06CH X0G

Manufacturer
TSC (Taiwan Semiconductor)
Description
MOSFET P-CHANNEL 60V 18A TO251
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
TSM680P06CH X0G PDF
Availability
15445 pieces
Unit Price
$0.86000

Current price of TSM680P06CH X0G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM680P06CH X0G Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:68mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:16.4 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:870 pF @ 30 V
FET Feature:-
Power Dissipation (Max):20W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-251 (IPAK)
Package / Case:TO-251-3 Stub Leads, IPak
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IRFD210

IRFD210

0.6A 200V 1.500 OHM N-CHANNEL
HOT IXTQ36N30P

IXTQ36N30P

MOSFET N-CH 300V 36A TO3P

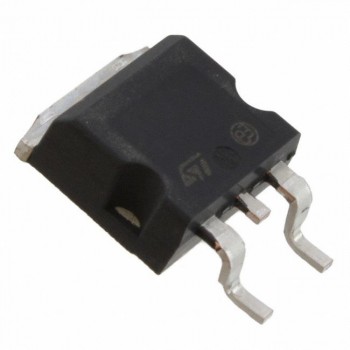

HOT STH3N150-2
