RM2301E

RM2301E

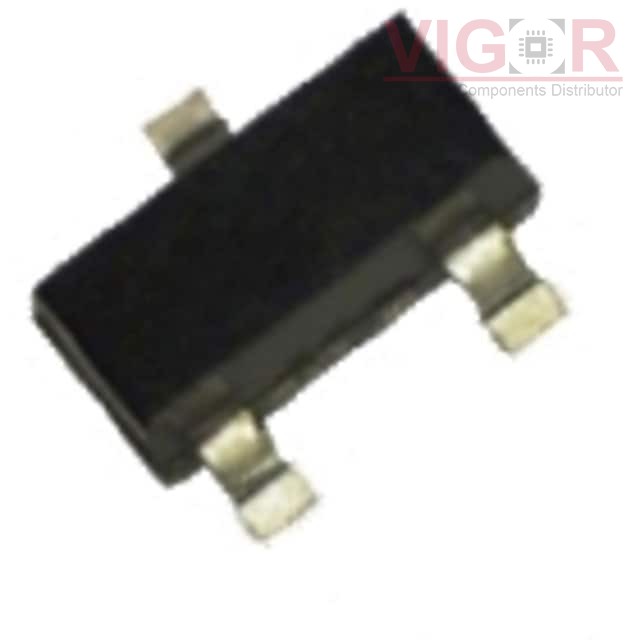

Image is for reference,
please contact us to get the real picture

Part No :

RM2301E

Manufacturer
Rectron USA
Description
MOSFET P-CHANNEL 20V 2.6A SOT23
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
RM2301E PDF
Availability
0 pieces
Unit Price
$0.04100

Current price of RM2301E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RM2301E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:2.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:120mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:325 pF @ 10 V
FET Feature:-
Power Dissipation (Max):1W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23
Package / Case:TO-236-3, SC-59, SOT-23-3
